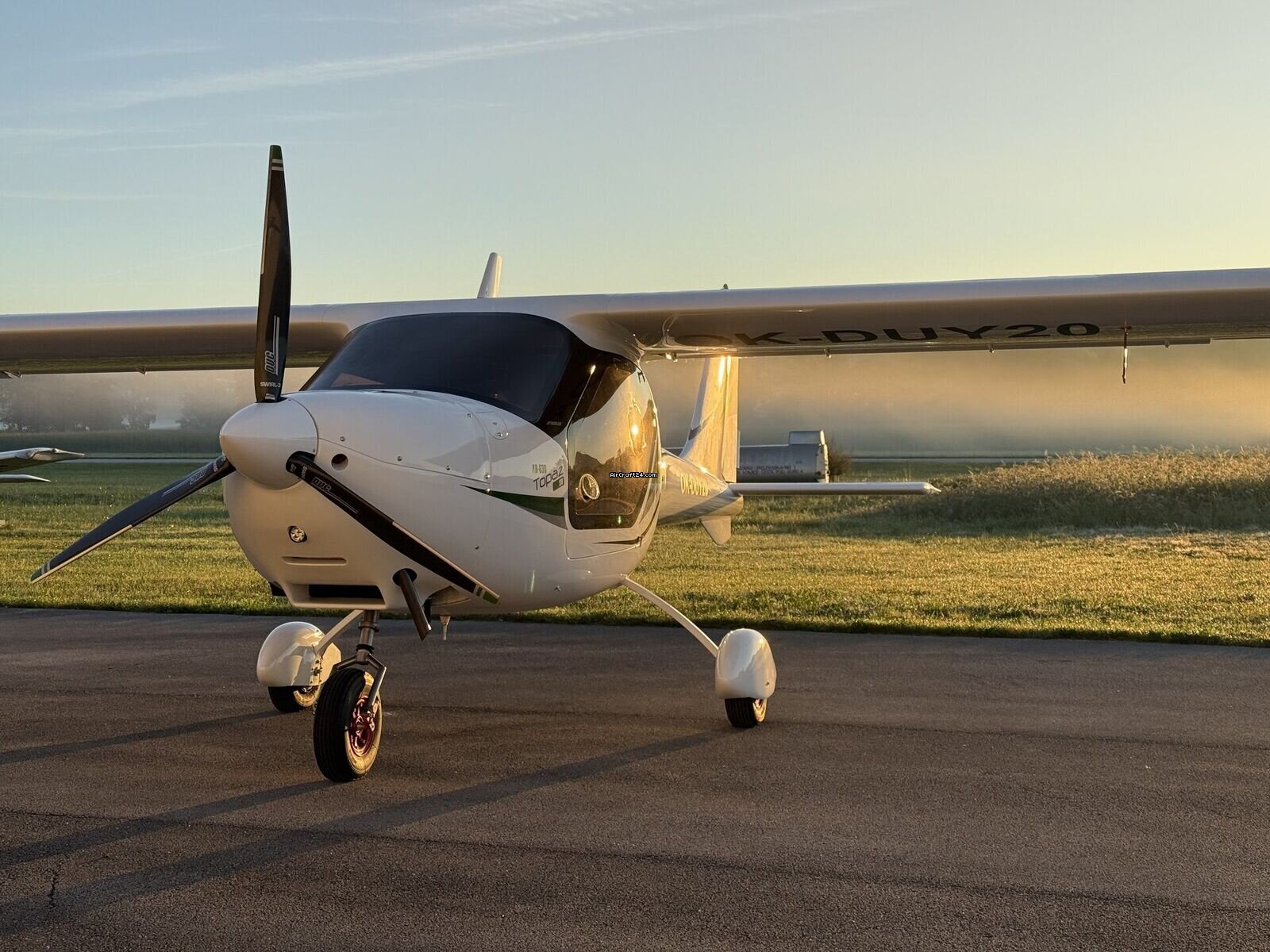

Ekolot Topaz KR-30 - 600

US$ 156.427
€ 137.000

概觀

基礎資料
類型:	單螺旋槳飛機
特別類型:	輕型運動飛行機 Aerial work
品牌:	Ekolot
型號 1:	Topaz KR-30 - 600
製造年:	2024
註冊號:	OK-DUY20
系列號:	30-15-01

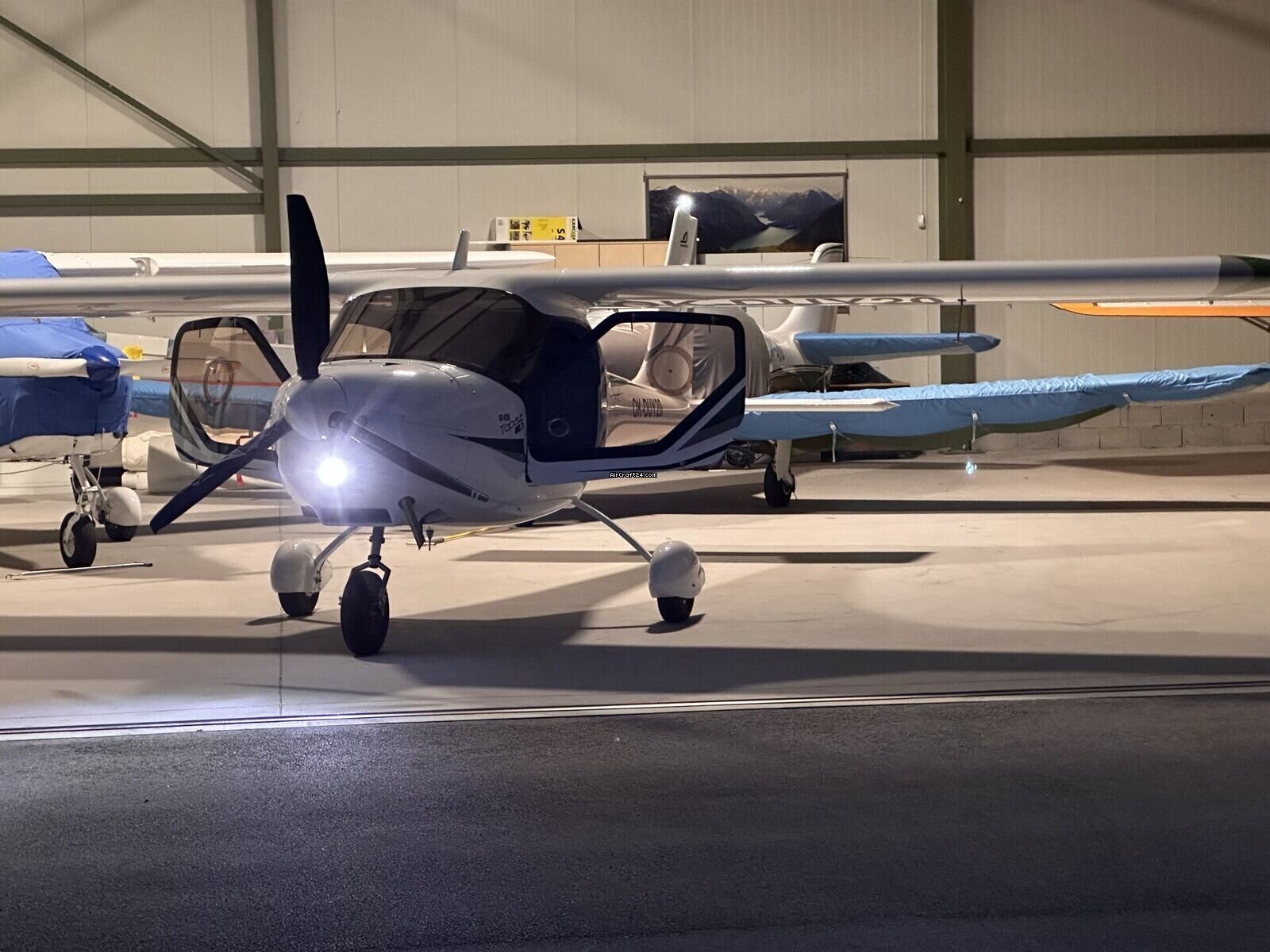

屬性:	停留在機庫
地點:	斯洛維尼亞, Slovenske Konjice, LJSK
縂時間（TTAF）:	160 h
價格:	€ 137.000 (~ US$ 156.427)
歐盟增值稅:	不
所有的細節

銷售者
Matevz Lenarcic 電話: +38641353392
聯係銷售者




查看所有的 18圖片

細節

基礎資料
類型:	單螺旋槳飛機
特別類型:	輕型運動飛行機 Aerial work
品牌:	Ekolot
型號 1:	Topaz KR-30 - 600
製造年:	2024
註冊號:	OK-DUY20
系列號:	30-15-01
屬性:	停留在機庫
地點:	斯洛維尼亞, Slovenske Konjice, LJSK
縂時間（TTAF）:	160 h
價格:	€ 137.000 (~ US$ 156.427)
歐盟增值稅:	不
著陸:	210

多個發動機
發動機數量:	1
製造商/型號:	Rotax 912 ULS 2-01
系列號:	10004749
功率:	100 PS
時間總計:	170 h
Time Between Overhaul ？？？大修間隔時間 (hours):	2000 h
螺旋槳製造商/型號:	DUC SWIRL3
螺旋槳時間總計:	170 h

描述/發動機細節
Electric carburetor heating, oil thermostat

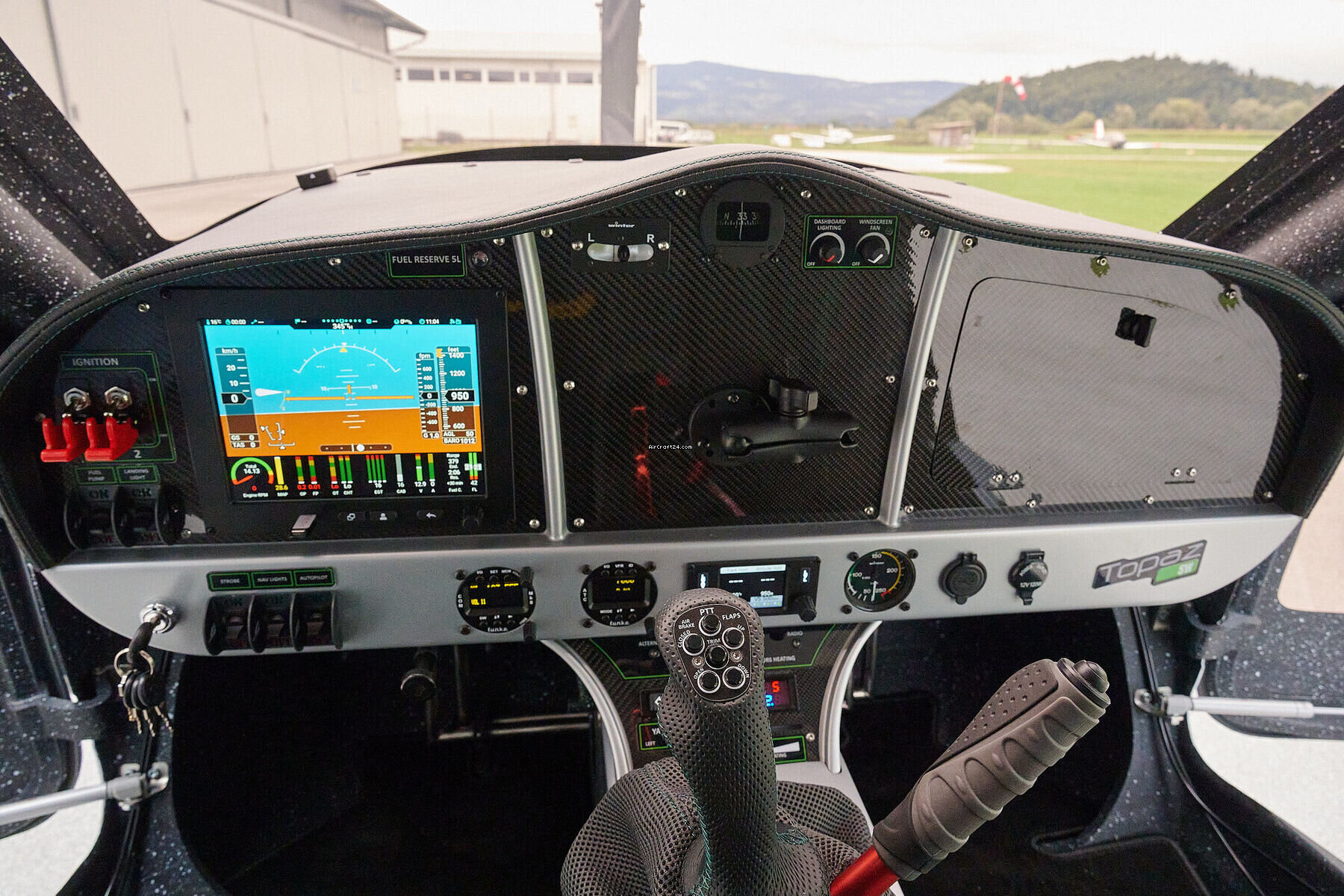

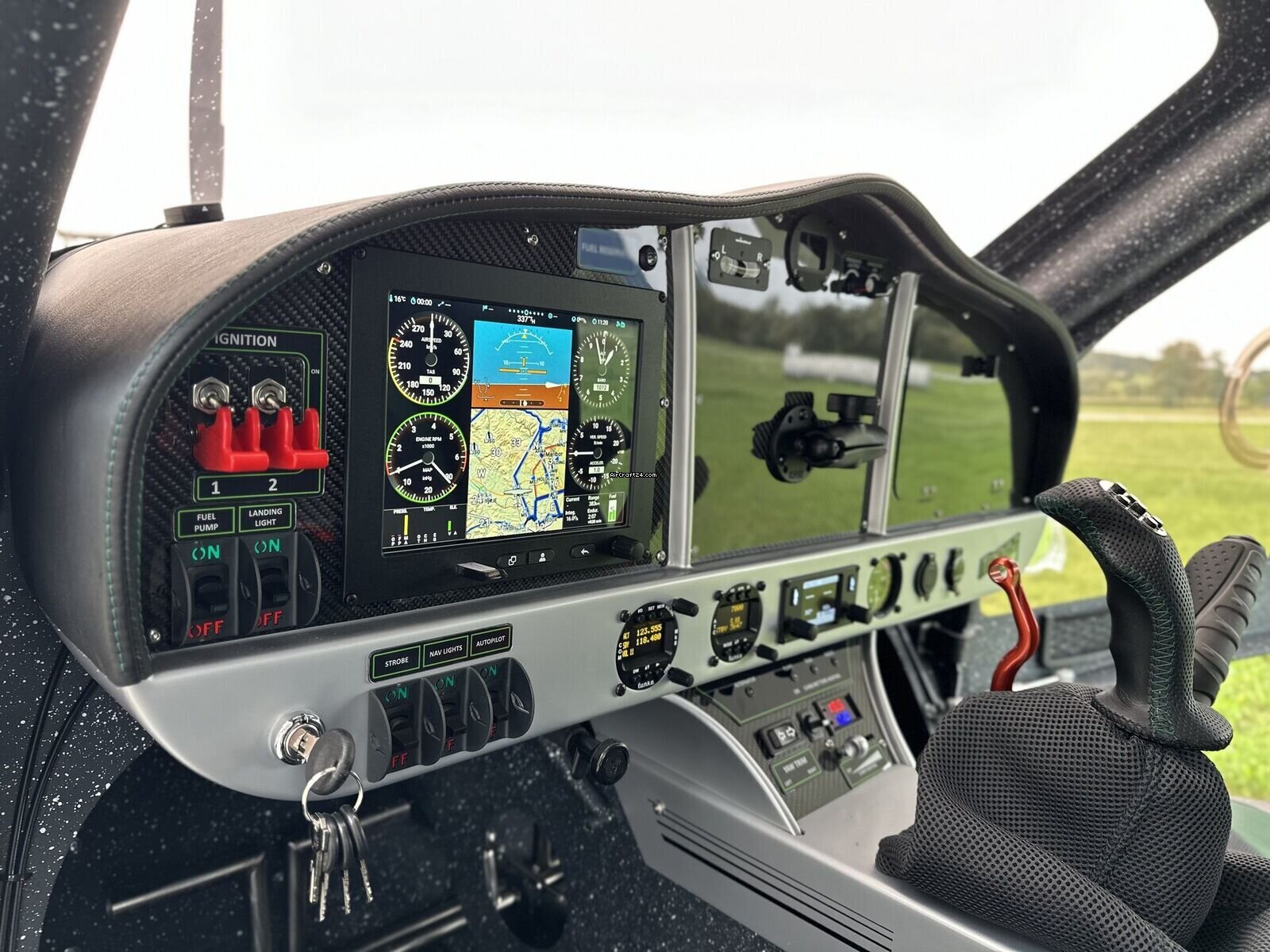

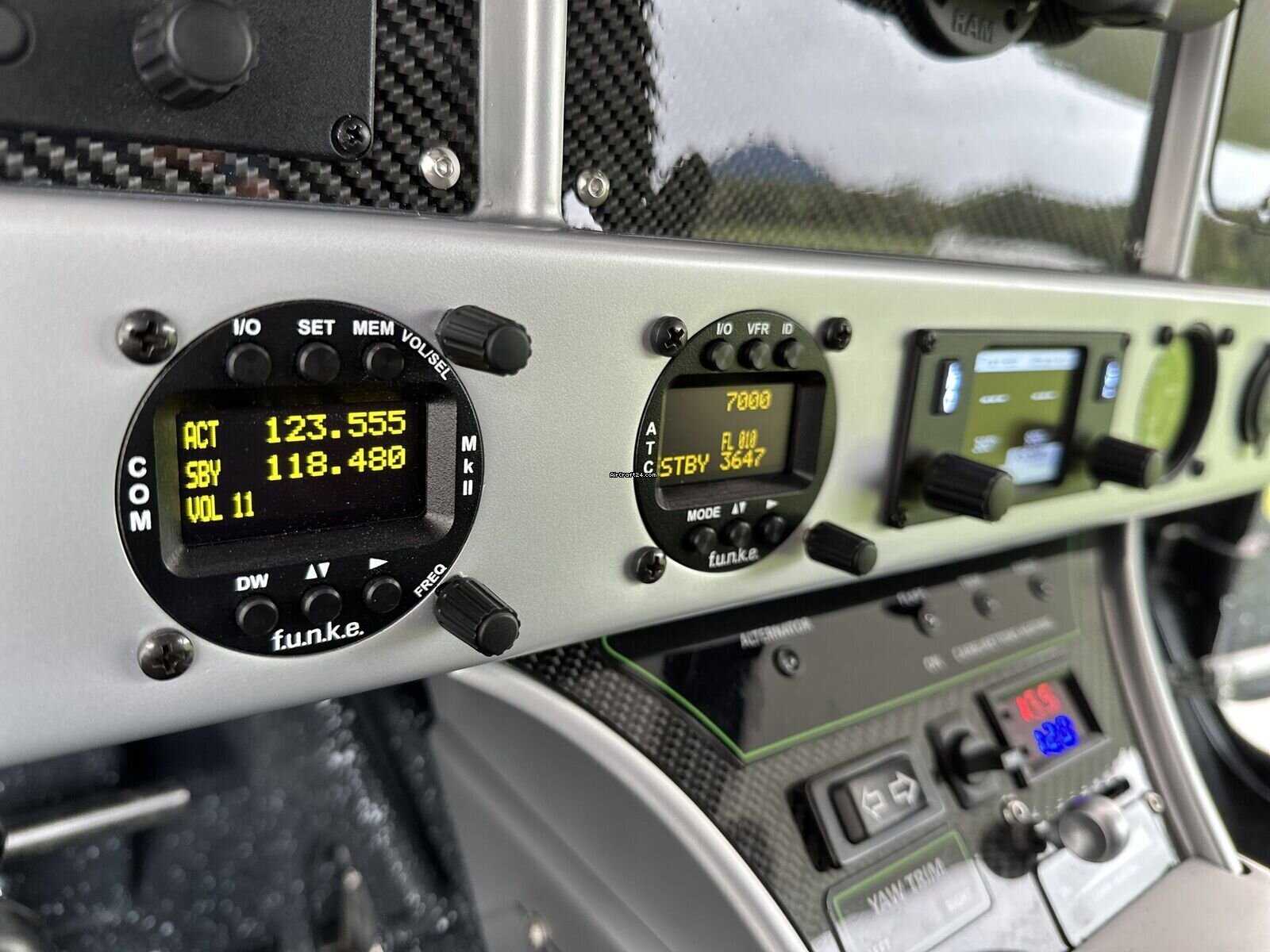

航空電子設備

Transponder (Funkwerk TRT 800 Mode S, Mode A/C, ADS-B out).
VHF Radio (Funkwerk ATR 833=II Oled Dual Watch 8.33 kHz Supported directly from the EFIS Nesis III menu.- frequency entry- selection of frequencies saved in navigation).

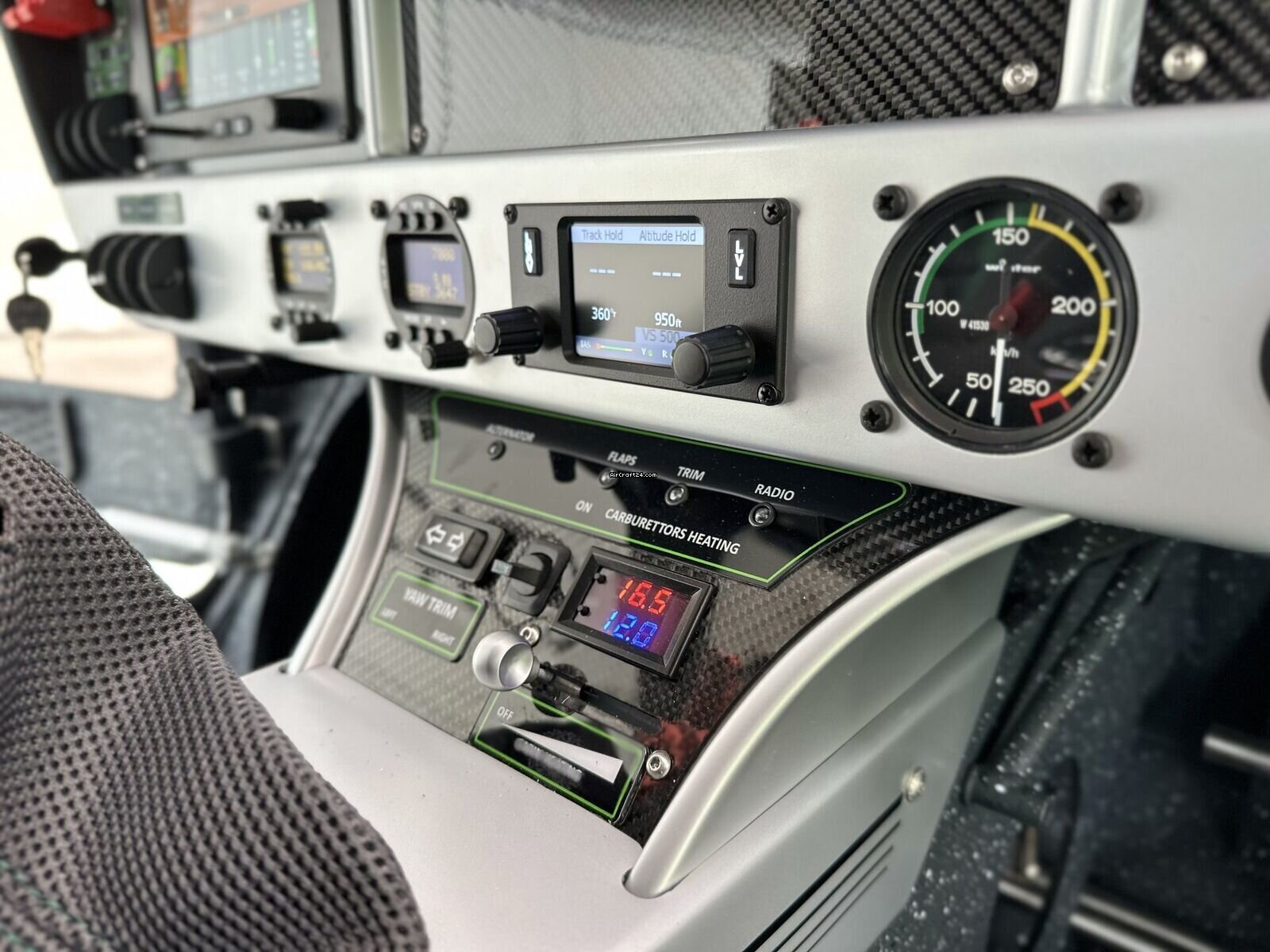

Autopilot Kanardia (2-axis autopilot system, elevator and ailerons, the aircraft must be equipped with rudder trim). Control modes: Level flight - using ailerons and elevator keep the plane in horizontal flight Heading - using ailerons it maintains set course relativ to the ground Vertical speed - using elevator it maintains the set vertical speed (ascent or descent) Altitude - using the rudder it reaches and then maintains the set altitude Flight Director - using ailerons, it flies to the destination set in navigation).

Headphones lemo and standard connectors

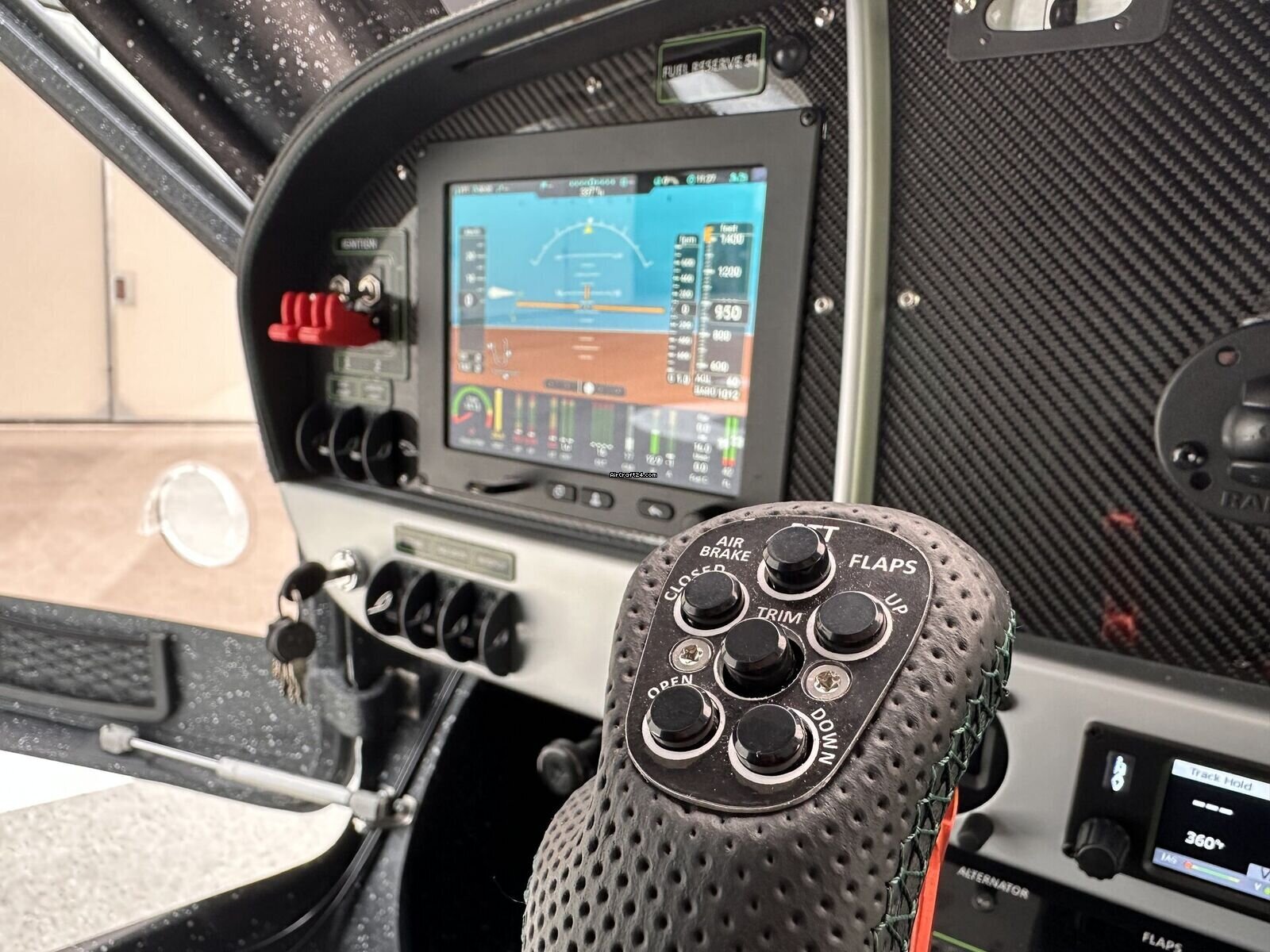

Stick, centrally positioned, allows you to control flaps - trim - PTT- Aux, air brakes, autopilot.

裝備

Cockpit width 1.2 m.

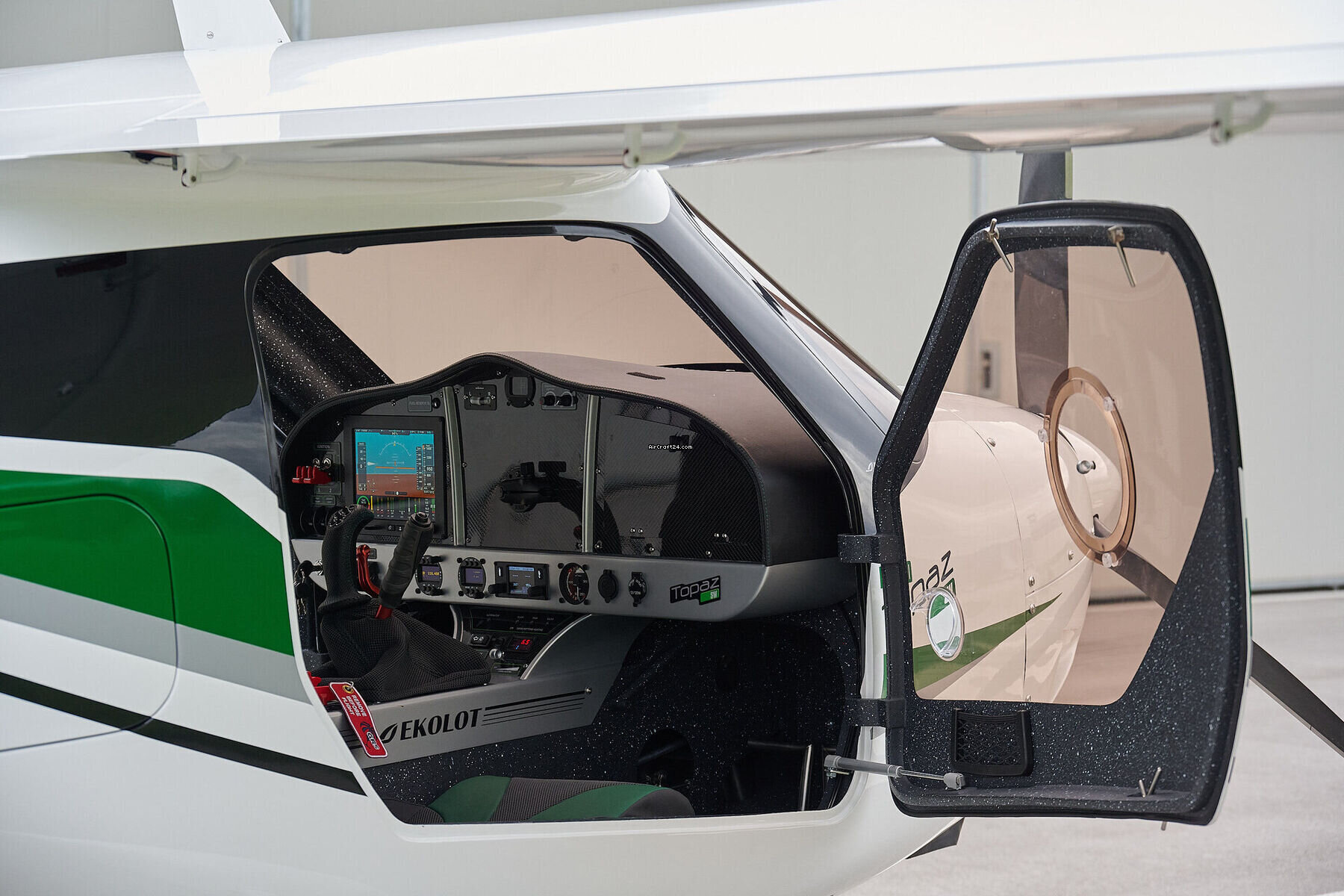

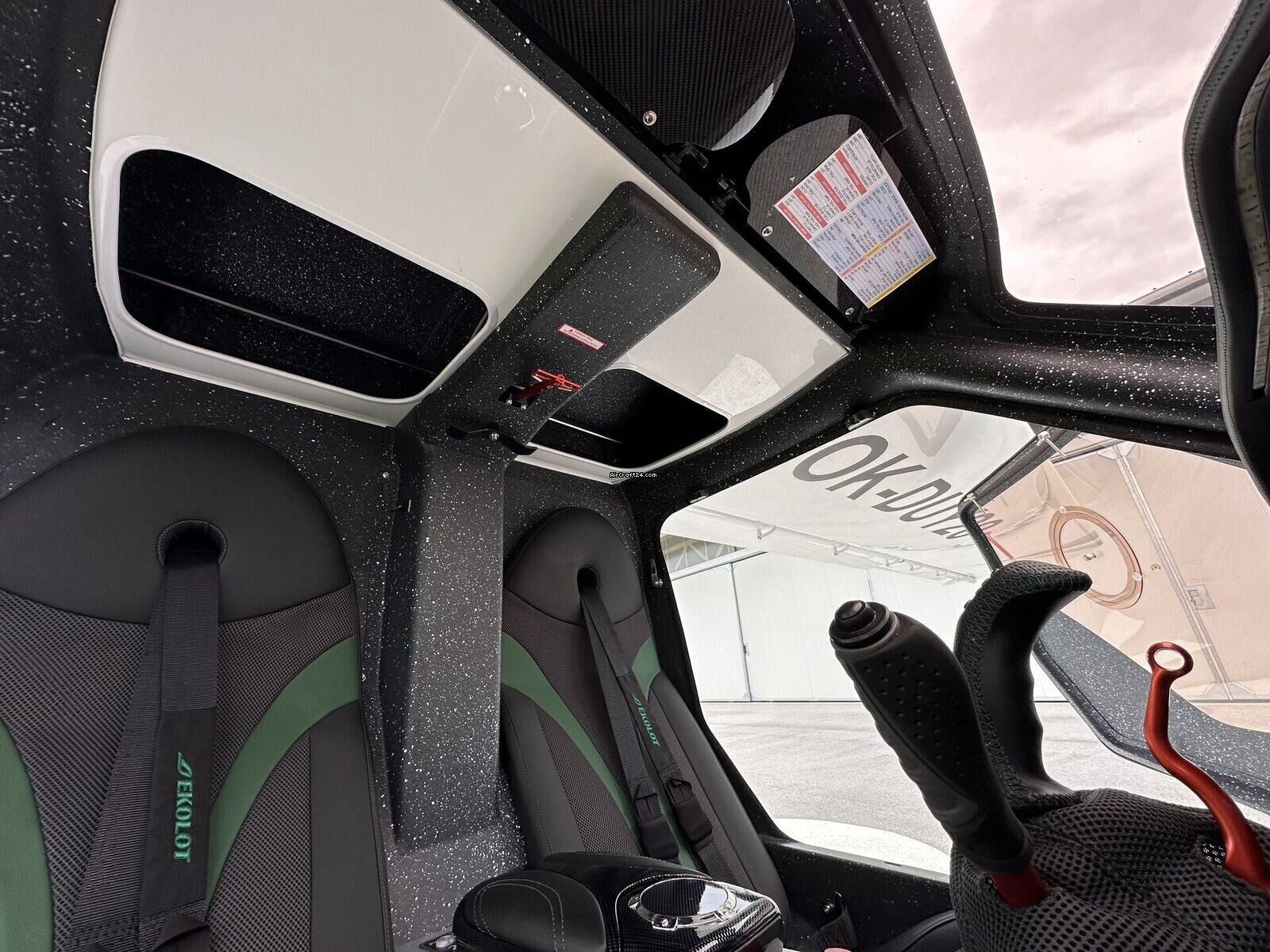

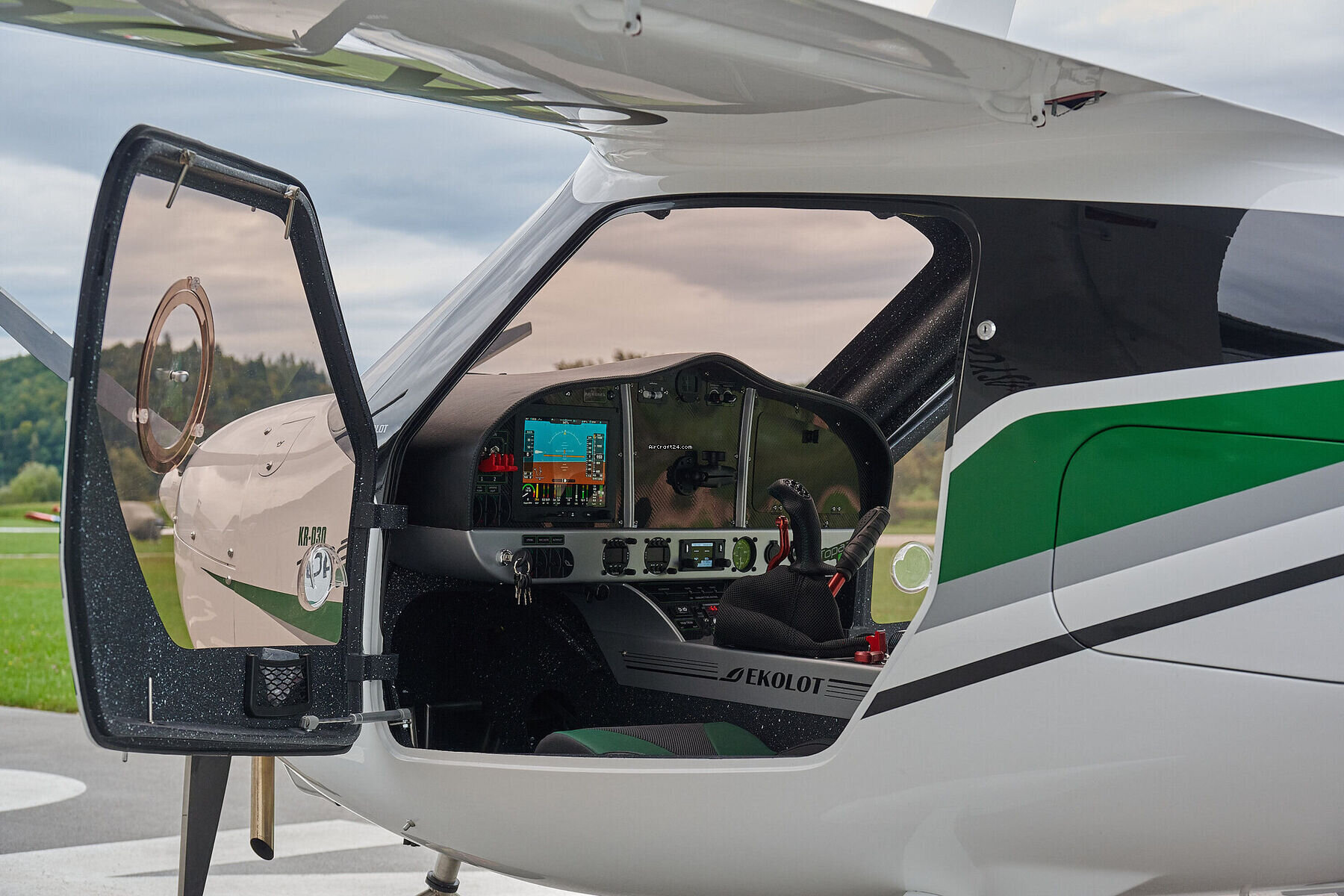

Seats with a shell structure made of composites. Cockpit cover - a wind-up glass made of ultraviolet-resistant acrylic glass (PMMA polymethyl methacrylate), side door also made of acrylic glass (PMMA), 3 mm thick, on a composite frame.

Vertical stabilizer integral with the fuselage. Tricycle landing gear with a front wheel.
Slotted flaps driven by the fuselage - electric, control on a joystick.
The aileron is made of carbon laminate due to the necessary high torsional stiffness, with the smallest possible mass (anti-flutter requirements) with a mass balance fixed at its end.
Wings air brakes controlled on stick.
Elevator and aileron trimmer - spring-loaded, electrically adjustable, control on the joystick
92 l fuel tanks mounted in the wings, 5 l fuel tank under the instrument panel
- Parachute rescue system(Galaxy to 600 kg)
- Brake system Beringer (Full Beringer brake kit: - main wheels with tubeless tires, Beringer brake calipers, Beringer discs, steel brake hoses - Beringer front tire with tubeless tire Beringer brake pump with parking brake pin.)

外觀

Engine cover with Cam-Lock fasteners (Engine cowling made from carbon fiber with Cam-lock fastners. Inspection tap allows control of the oil level without removing the engine cowling.).
Wheel fairings (Fairings of the main wheels and front wheel. painted white).
Marker lights and strobe (Standard marker lights: red and green at the ends of the wings. White stroboscope on the vertical fin.)
Landing light.
Covers for the entire aircraft.

内部

Tinted windows (Side and front windows slightly dimmed with PMMA 3mm).
Ventilation - cab heating(Two adjustable air inlets on side windows, Blowing air on the windscreen with variable speed, Adjustable heating of the cab.)

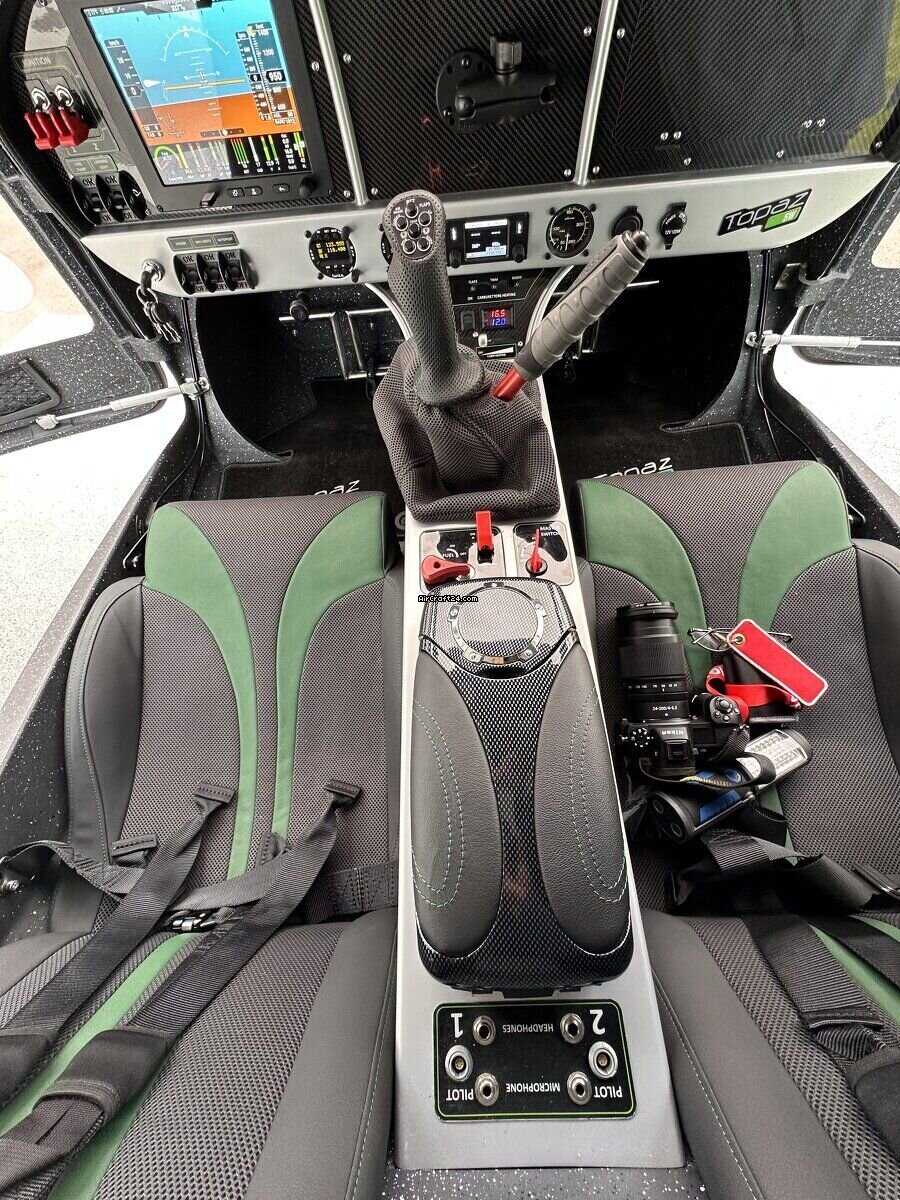

Exclusive package(Mesh containers for trinkets 2 pcs Mats on the door Armrest-container for trinkets glove compartment Instrument panel - carbon panels, Sun visors for the pilot and passenger USB socket Hanger for headphones).
